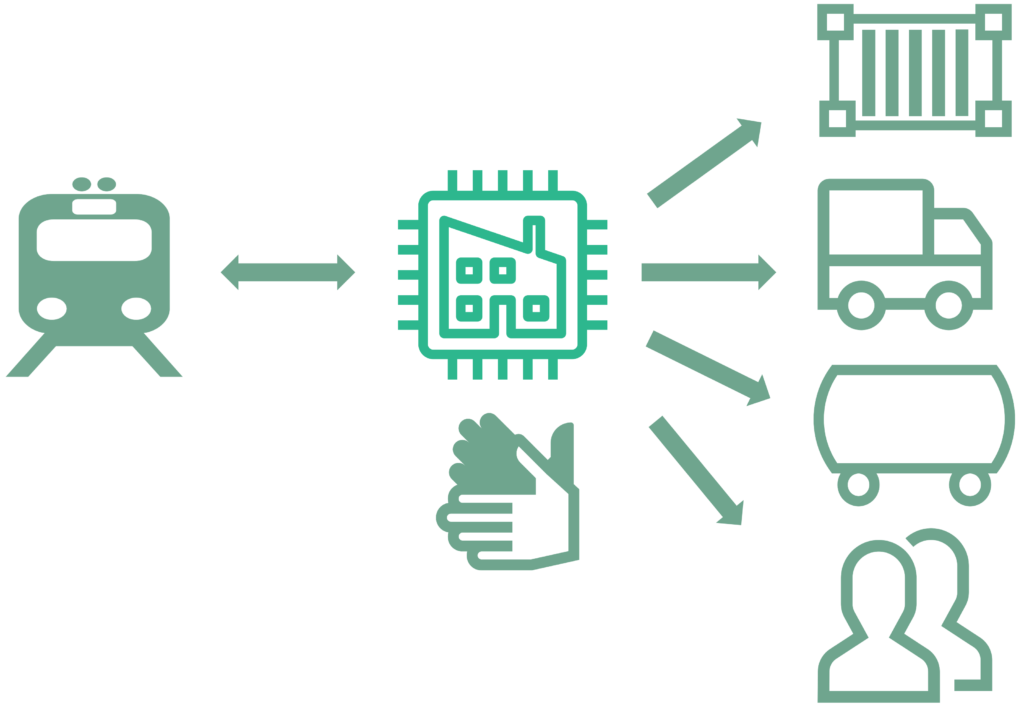

Interfaces integrate icRail with other data sinks and sources and allow a seamless integration of the planning process beyond system boundaries.
Challenges
Planning of movements and/or standings of your logistics resources (e.g. locomotives, freight wagons) probably takes place in specific and sophisticated planning tools. Planning information about these resources can be provided automatically to icRail through interfaces.
Solution
icRail provides various interfaces to planning systems.
FAMOS / NeTS
Import of tracks from the system NeTS of SBB Infrastruktur.
Details
With the Netzweiten Trassensystem NeTS SBB provides a high level instrument for precise time table construction, track planning, track ordering and coordination.
Source: SBB
RailML®
Export of tracks, trips and train compositions based on RailML Standard
Details
railML® is an open-source railway markup language designed to facilitate seamless communication among diverse railway applications.
The data structure of the railML® interface is based on the XML language. It is described using the widely supported and standardised XML schema definition language (XSD) which allows syntactic validation and generation of parser code.
A wide range of extensive computer programmes exist for railroad planning processes. In today’s world, connecting various railway software packages often presents significant challenges. railML® offers an XML-based solution for simplifying data exchange between railway applications.
Source: railML.org e.V.
GTFS
Import of time tables including lines and routes
Details
General Transit Feed Specification
The General Transit Feed Specification (GTFS) is an Open Standard used to distribute relevant information about transit systems to riders. It allows public transit agencies to publish their transit data in a format that can be consumed by a wide variety of software applications.
Source: GTFS.org
TAF/TAP TSI
Import and export of routes, trips, tracks and waggon data including operative messages
- Distribution of Path Request Messages (PRM)
- Reception of Path Details Messages (PDM)
- Distribution and Reception of Waggon Performance Messages (WPM)
- Distribution and Reception of Waggon Damage Reports (WDR)
- Distribution and Reception of Train Running Information (PRI)
- Distribution and Reception of Rolling Stock Data Sets (RSDS)
- Distribution of Train Composition Messsages (TCM)
Details
The TAF/TAP Technical Specification for Interoperability (TTT) define the technical and operational standards which must be met by each subsystem or part of subsystem in order to meet the essential requirements and ensure the interoperability of the railway system of the European Union.
Source: European Union Agency for Railways (ERA)
TTT CI
Import and export of encrypted and signed messages based on the TTT standard
Details
The Common Interface is a TAF/TAP TSI (TTT) message exchange peer to peer application can be locally installed in customers’ datacentres.
The Common Interface also supports message exchange outside the scope of the TAF/TAP Regulations, if the conditions concerning the message structure are met.
Source: Rail Network Europe (RNE)

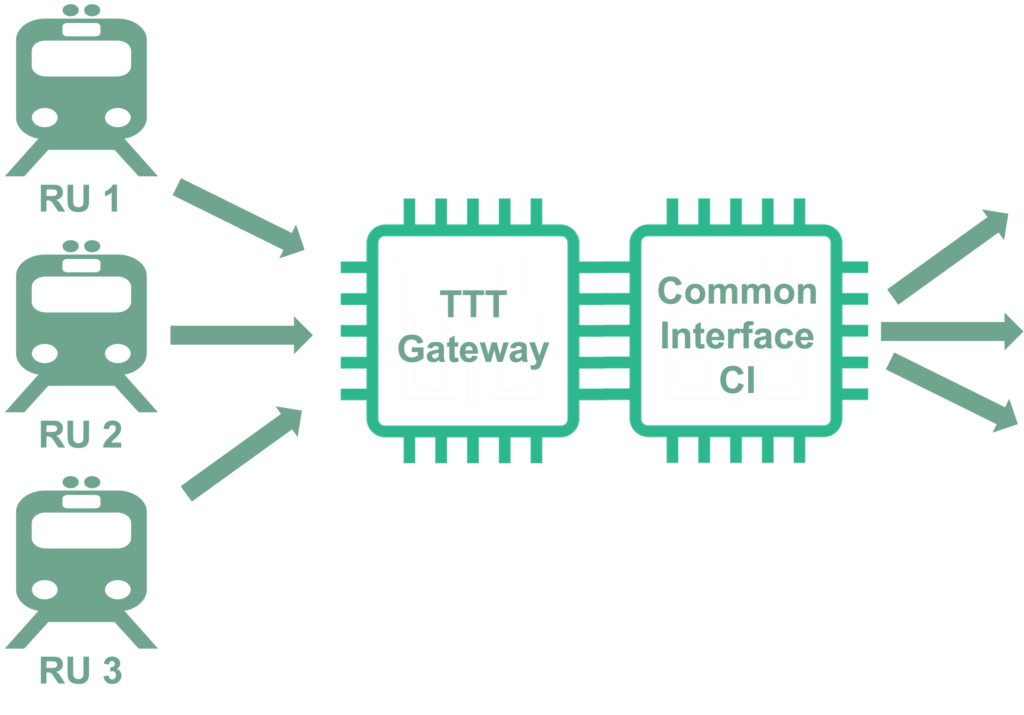

TTT Gateway
Gateway, that allows to connect to the Common Interface (CI) on the local interface side for the distribution of TAF/TAP TSI (TTT) messages.
Details

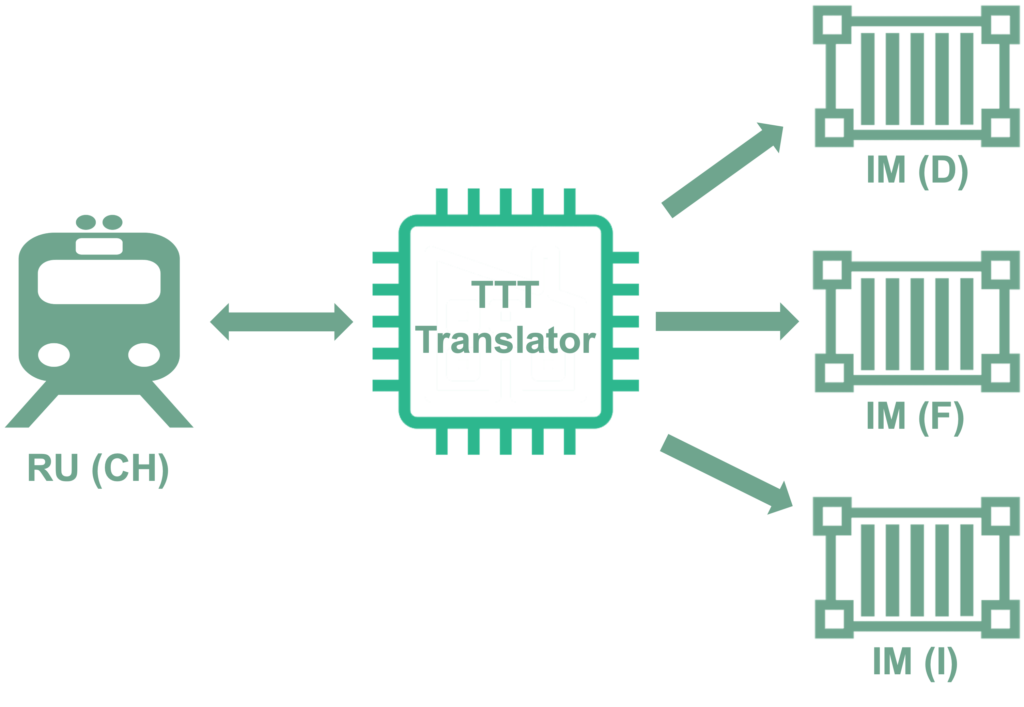

TTT Dialects
Transmission of messages and translation between various local dialects of TAF/TAP TSI (TTT) implementations
Details
R2P
(future) import and export of loads, agreed trips and ressources in addition to the TAF/TAP TSI standard
Details
RU-RU Communication (RU to(2) Partner) based on and enhancing the TAF/TAP TSI standard
Hermes 30
Import and export of train composition messages
Details
The Hermes 30 message is a key component of Train Composition messaging system data exchange standards for the HERMES Pre-advice (pre-announce) used for all operational interchange between railway undertakings.
It ensures compliance with TAF TSI train composition messaging between railway undertakings and infrastructure managers
Source: UIC
IFTmin
Import of consignment notes based on EDIFACT messages
Details
IFTmin is an EDI message format for the transmission of consignment note. IFTmin is based on EDIFACT and part of the EANCOM subset.
Link
Source: GS1
IFCsum
Import of train booking information based on EDIFACT messages
Details
A message from the party issuing either an instruction or a booking regarding forwarding/transport services for a collection of consignments under conditions agreed, to the party arranging the forwarding and/or transport services. The IFCsum message can also be used as an arrival notice for multiple consignments.
Link
Source: GS1
Contact us in order to discuss your requirements.
